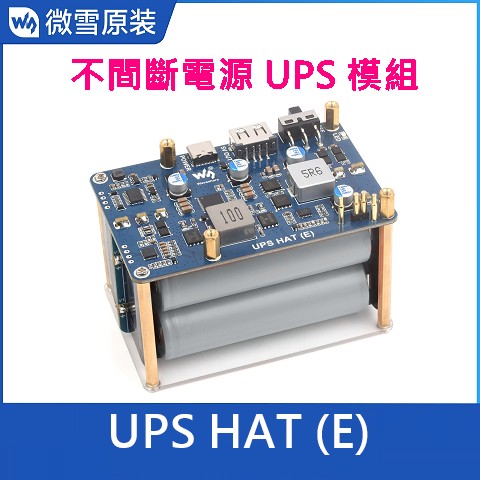

樹莓派不間斷電源 UPS 模組擴充板 E 型 | Raspberry Pi 5 適用 | 5V 6A 大電流 | UPS HAT (E)

描述

樹莓派不間斷電源 UPS 模組擴充板 E 型 | Raspberry Pi 5 適用 | 5V 6A 大電流 | UPS HAT (E)

Uninterruptible Power Supply For Raspberry Pi
Type-C Bi-Directional Fast Charging, 5V 6A Output. Supports Charging And Power Output At The Same Time, Onboard Battery Fuel Gauge IC

Comes with online development resources and manual



Features

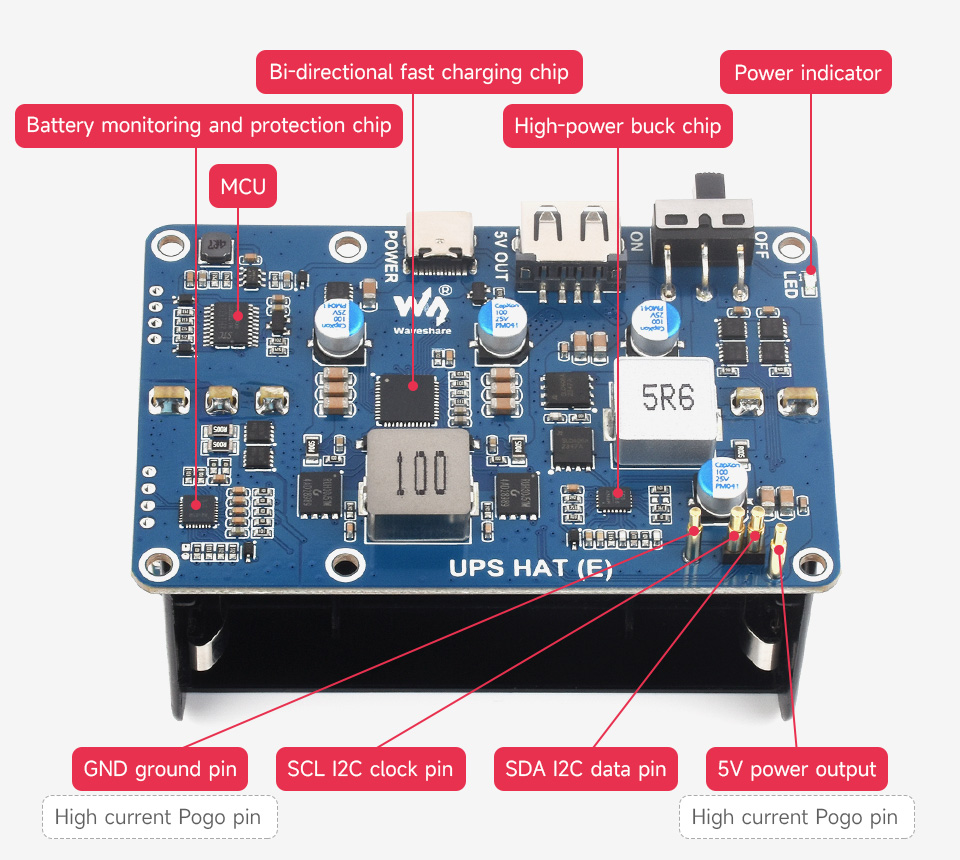

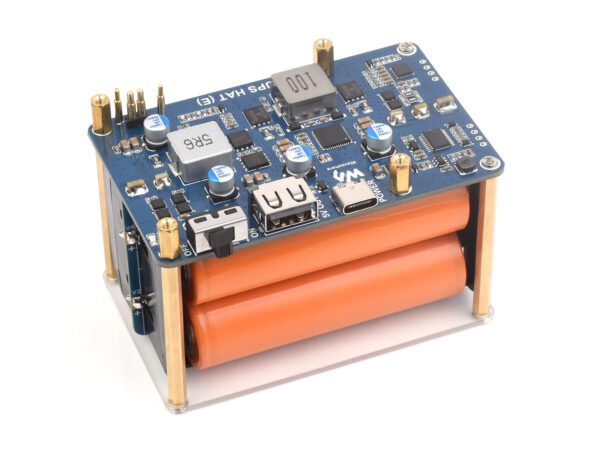

The UPS HAT (E) is an uninterruptible power supply (UPS) expansion board specially designed for the Raspberry Pi series. Onboard battery fuel gauge IC, fast charging chip and high-power buck chip to realize higher power input and output. Supports monitoring the operating state of the HAT via the I2C interface.

• Adopts pogo pins connector design, compatible with Raspberry Pi 5 / 4B / 3B+
• Onboard Type-C port with bi-directional fast charging, supports multiple charging input / output protocols such as PD3.0, up to 40W charging power
• Onboard battery fuel gauge IC for reading battery voltage, current, power, remaining capacity and other parameters.
• Supports I2C bus communication for monitoring the operating status of Type-C port and batteries in real time

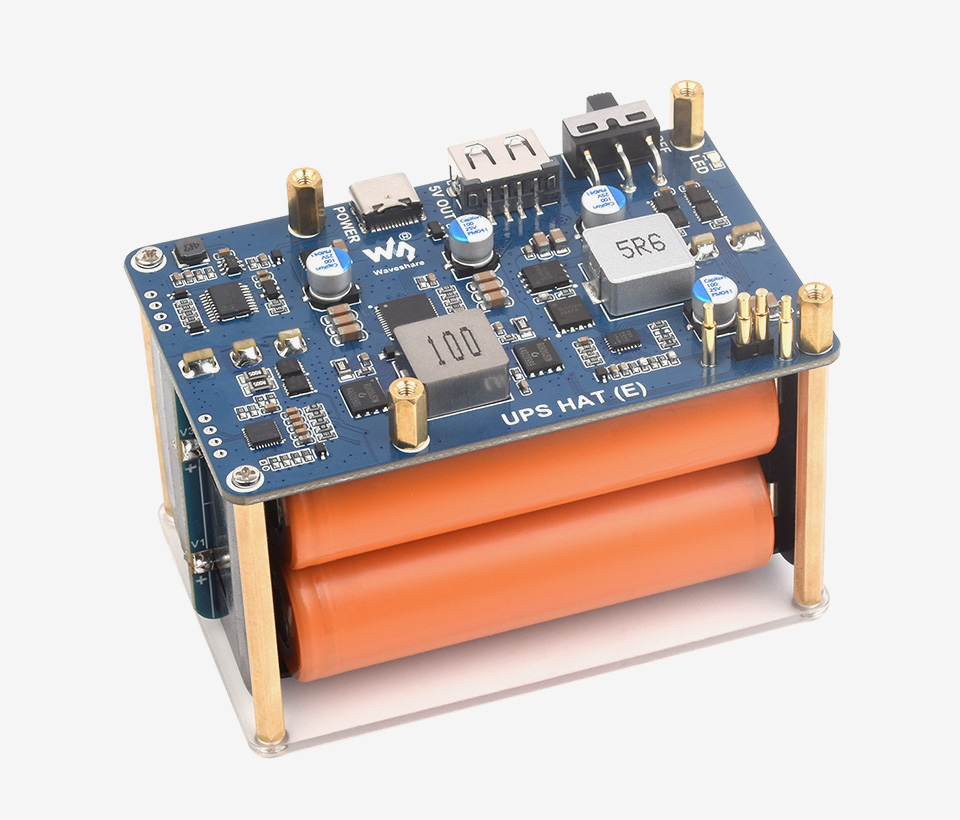

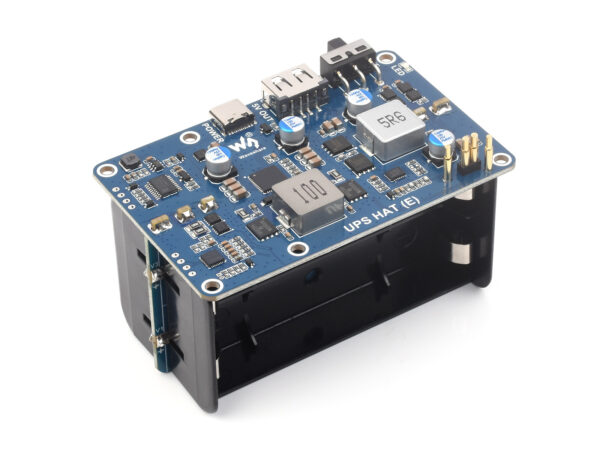

• Supports 4× 21700 Li batteries (NOT included), larger capacity and longer battery life
• Onboard high-power buck chip for stable 5V 6A power output
• Onboard MCU management, supports detecting power connection and booting the Raspberry Pi
• Supports displaying battery level on the system, easy to check the operating state of the HAT
• Comes with online development resources and manual

Specifications

CONTROL BUS	I2C
BATTERY SUPPORT	21700 Li battery × 4
TYPE-C POWER	Bi-directional input/output fast charging protocol, up to 40W charging power
OUTPUT POWER	5V 6A
DIMENSIONS	56 × 88mm
MOUNTING HOLE SIZE	3.0mm

Uninterruptible Power

It is able to charge the batteries and provide power output at the same time from external power supply
Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

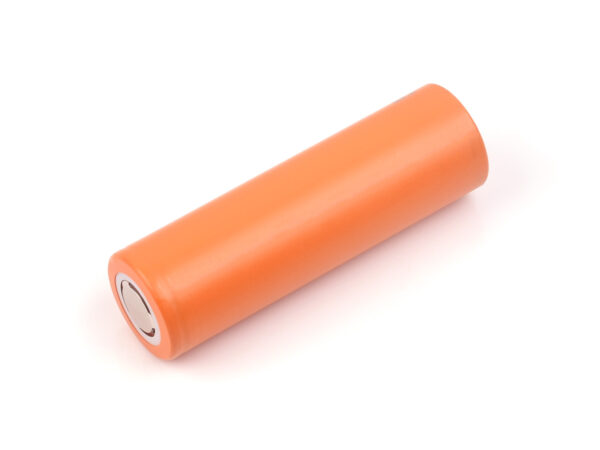

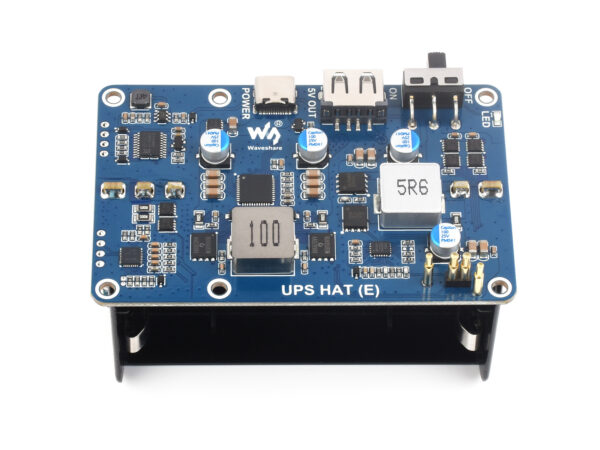

Supports 21700 Large Capacity Li Battery,
Longer Battery Life

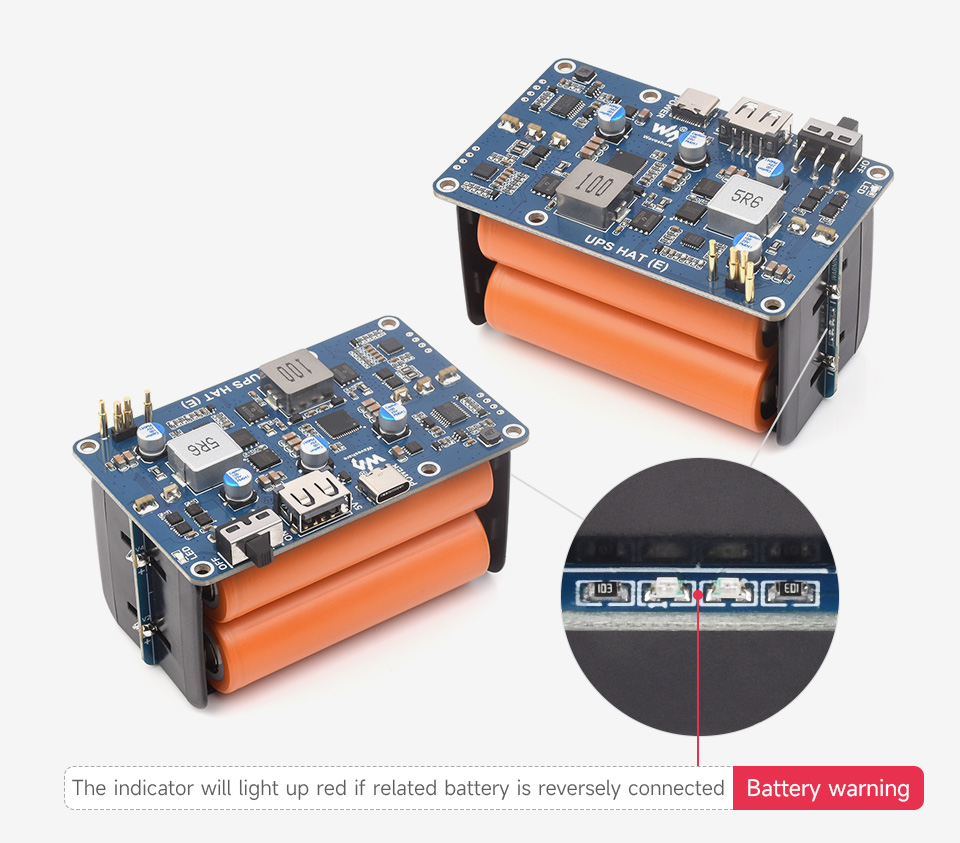

Onboard Warning Indicators, Easy To Check If The Battery Is Connected Correctly



* Do not connect the recharger if the indicator lights up, otherwise the protection circuit will be broken down.

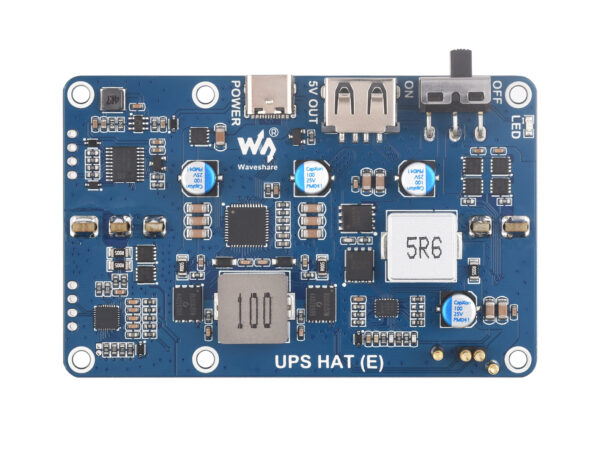

Onbaord USB Interfaces

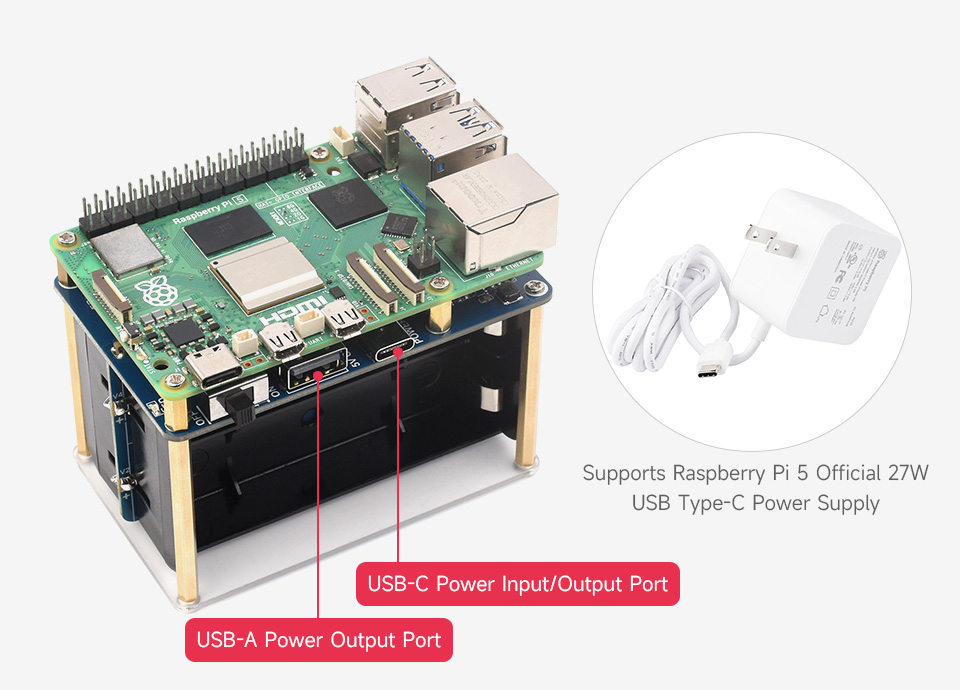

Adopts USB Type-C Interface, Supports Multiple Input/Output Protocols. Supports 5V, 9V, 12V, 15V, 20V Input Voltage, Up To 40W Charging Power. Onboard USB Type-A Interface For 5V Power Output, More Convenient For Powering Other Boards



* for reference only, the Raspberry Pi 5 Official 27W USB-C power supply is NOT included.

Pogo Pins Connector

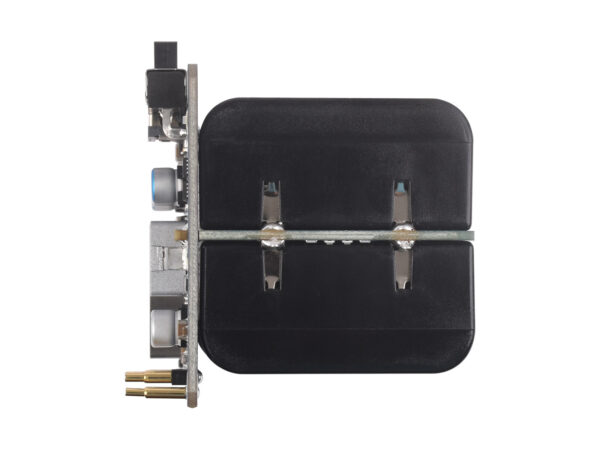

Powering The Raspberry Pi Via Pogo Pins, Without Using Any GPIO Resource,
Compatible With Raspberry Pi 5 / 4B / 3B+, Etc.



Real Time Monitoring

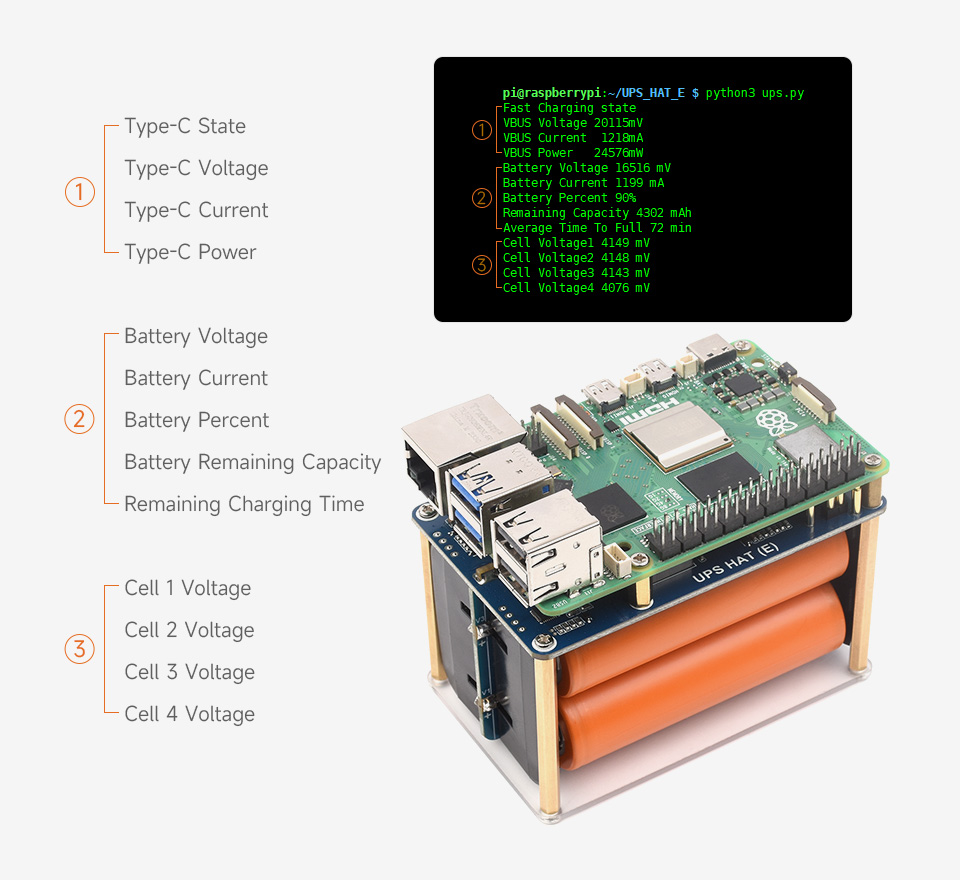

Monitoring The Type-C Port And Batteries Voltage, Current, Power, And Remaining Capacity Via I2C

When the voltage dips too low, it is possible to save files properly and then shut down the system by software, to avoid any data loss

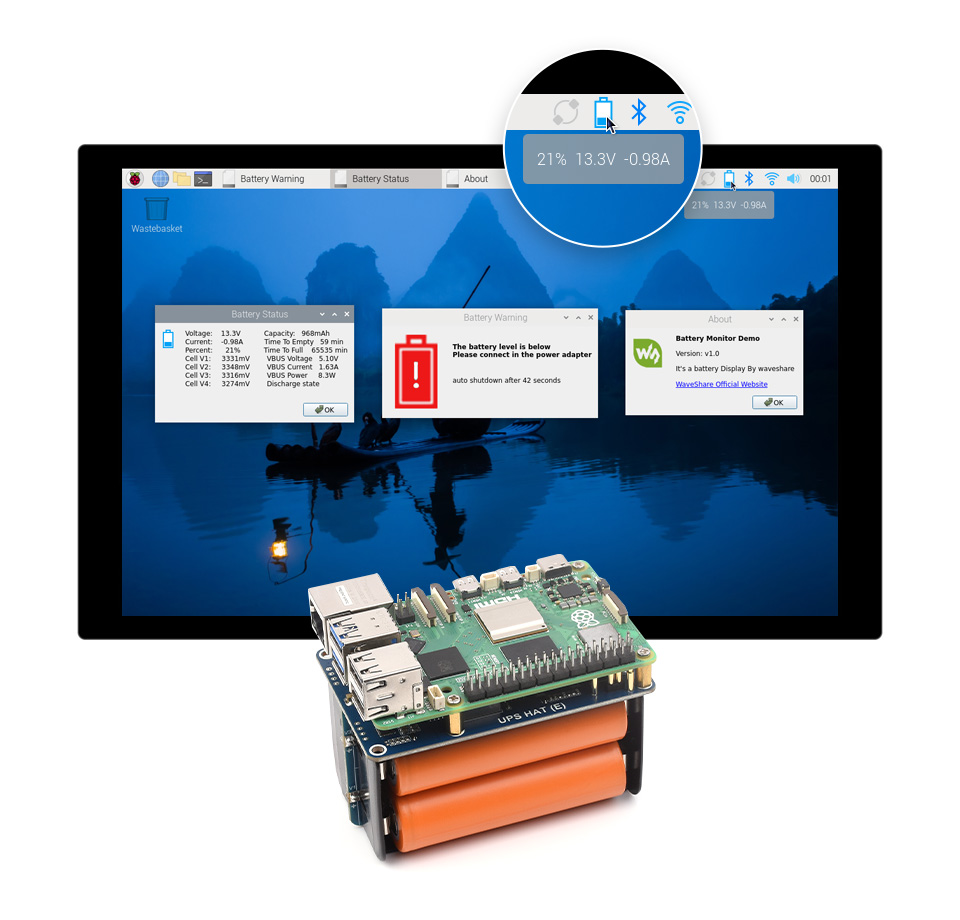

Supports Battery Level Display And
Detecting Power Connection

Easy To Check The Battery Status In Real-Time, And Automatically Shutdown When The Battery Level Is Low. Supports Detecting Power Connection And Automatically Rebooting The Raspberry Pi

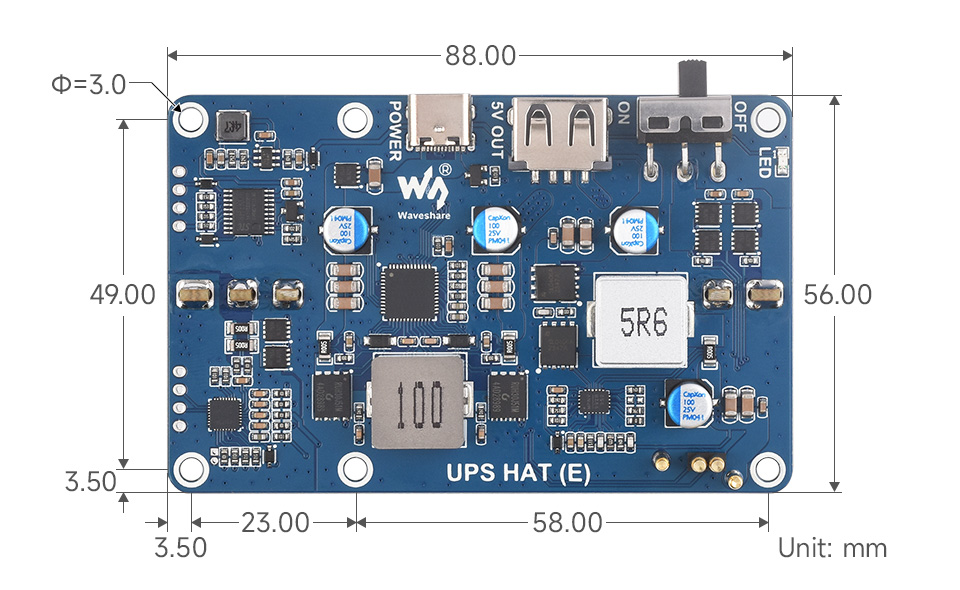

Outline Dimensions



Package Contents

• UPS HAT (E) x1
• Acrylic protection panel x1
• Screws pack x1
• 21700 batteries x4



Resources & Services

• www.waveshare.com/wiki/UPS_HAT_(E)
