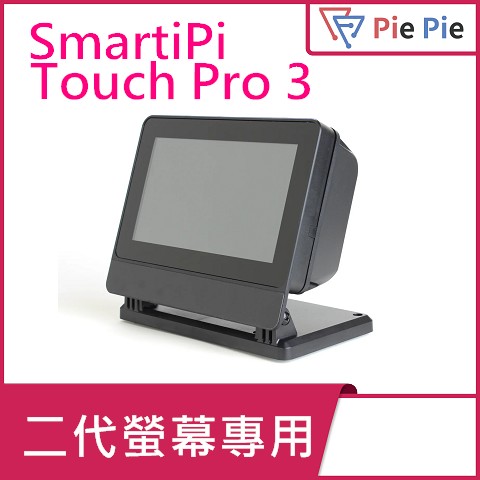

SmartiPi Touch Pro 3 Case for the Official Raspberry Pi Display 2 | 樹莓派官方 7 吋觸控螢幕 V2 專用外殼 | Pi 5 / Pi 4 / Pi 3 適用

描述

SmartiPi Touch Pro 3 Case for the Official Raspberry Pi Display 2 | 樹莓派官方 7 吋觸控螢幕 V2 專用外殼 | Pi 5 / Pi 4 / Pi 3 適用

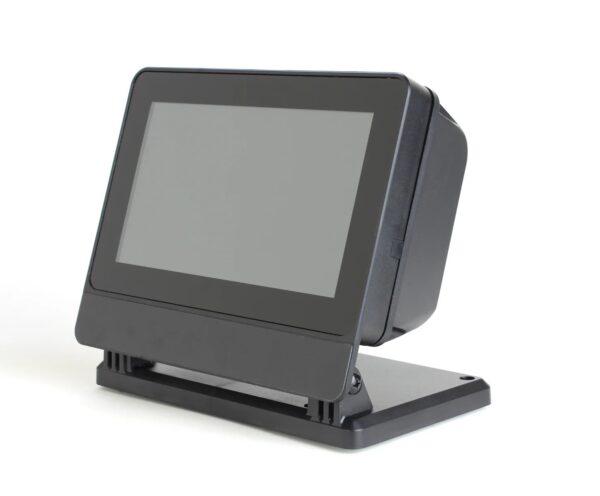

SmartiPi Touch Pro 3 為樹莓派官方 7 吋觸控螢幕V2 (二代螢幕) 專用外殼/站立架。

提醒您：本商品為二代螢幕專用，一代不適用。



《產品簡介》

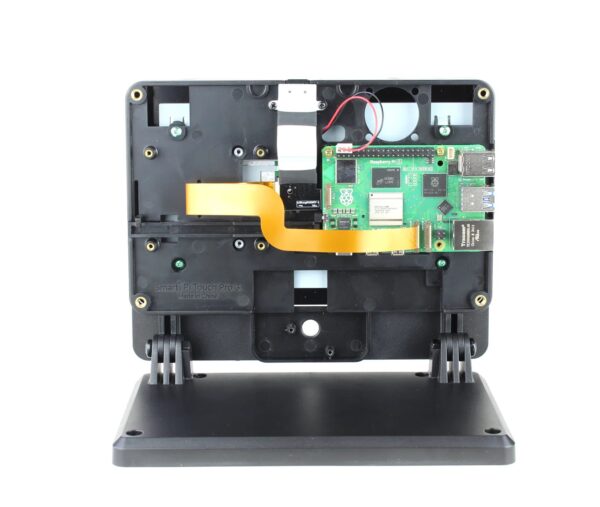

SmartiPi Touch Pro 3 是一款適用於 Raspberry Pi Touch Display 2 官方觸控螢幕二代以及 Raspberry Pi 3、4 和 5 的外殼。大、小尺寸後蓋可為您的擴充板或其他客製化組件創造一個內部大空間。顯示器底部還預留了放置 Raspberry Pi 相機的空間。如果您使用的是搭載 Pi OS 的 Raspberry Pi 5，側邊的開關可用於開機及關機。組裝完成後，USB 和乙太網路連接埠位於外殼側面，HDMI 和音訊孔位於外殼背面。

《產品特色》

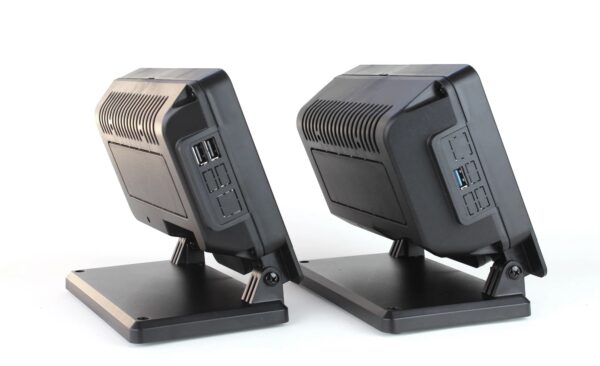

• Two back cover sizes available
• Cooling fan is not included but is an optional accessory

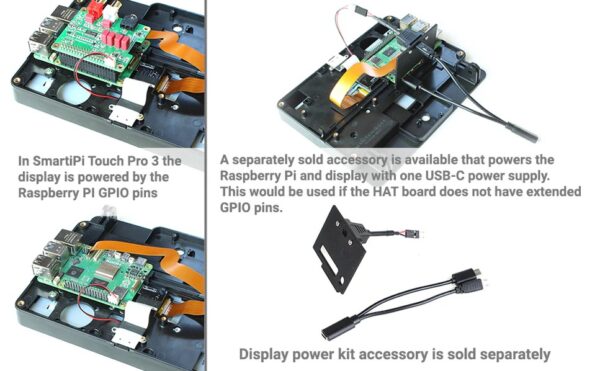

• The Raspberry Pi Touch Display 2 is powered by the Raspberry Pi GPIO ( extended GPIO pins are required if using a HAT )  Optional accessory available to power the display via a USB-C splitter cable.
• The power, HDMI, and audio jack on the Raspberry Pi are accessible on the back of the case
• A removable panel near the Raspberry Pi ports allows the flexibility of accessing HAT boards and connectors

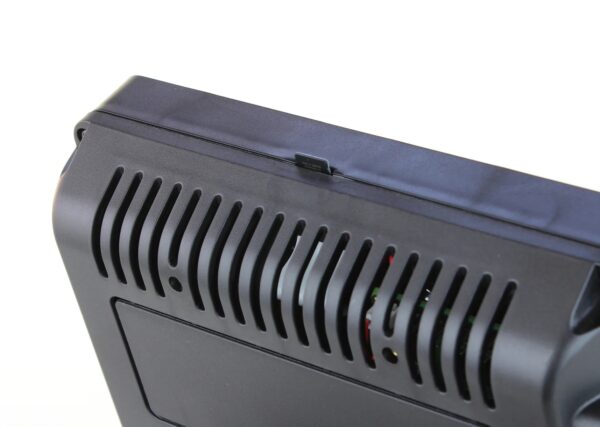

• A included micro SD extender allows access to the micro SD card at the top of the case
• 75mm VESA mount points on the back of the case
• Weighted base
• Punch out USB/Ethernet covers for Raspberry Pi 3,4, and 5

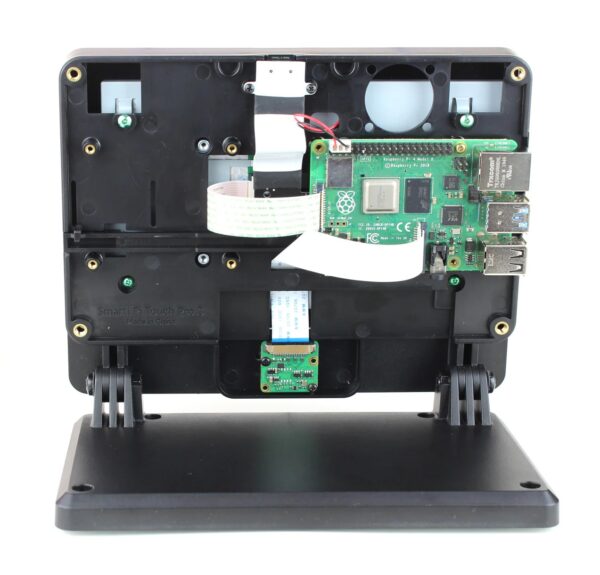

• Mounting point for Raspberry Pi camera V2 and V3 ( wide angle and standard lens)
• Back panel on the back cover can be cut out with a utility knife
• Front adhesive label to cover the camera hole ( customized graphics for 100+ pieces)

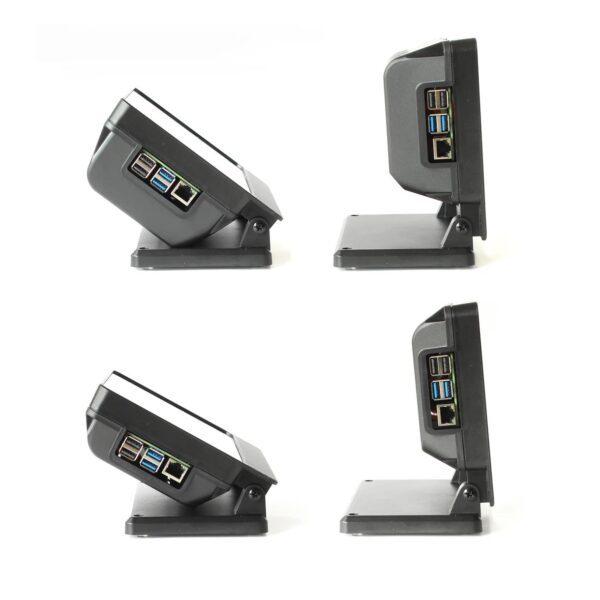

• Tilting display

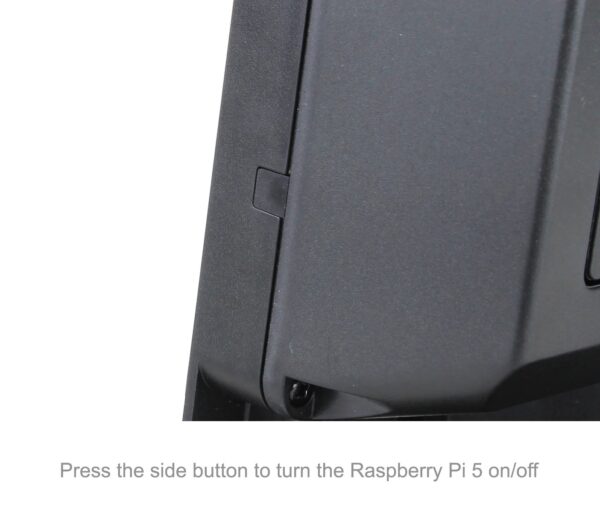

• Side button to actuate the on/off microswitch on Raspberry Pi 5
• Secondary set of interior mounting points for a development board, HAT, or alternative Raspberry Pi position

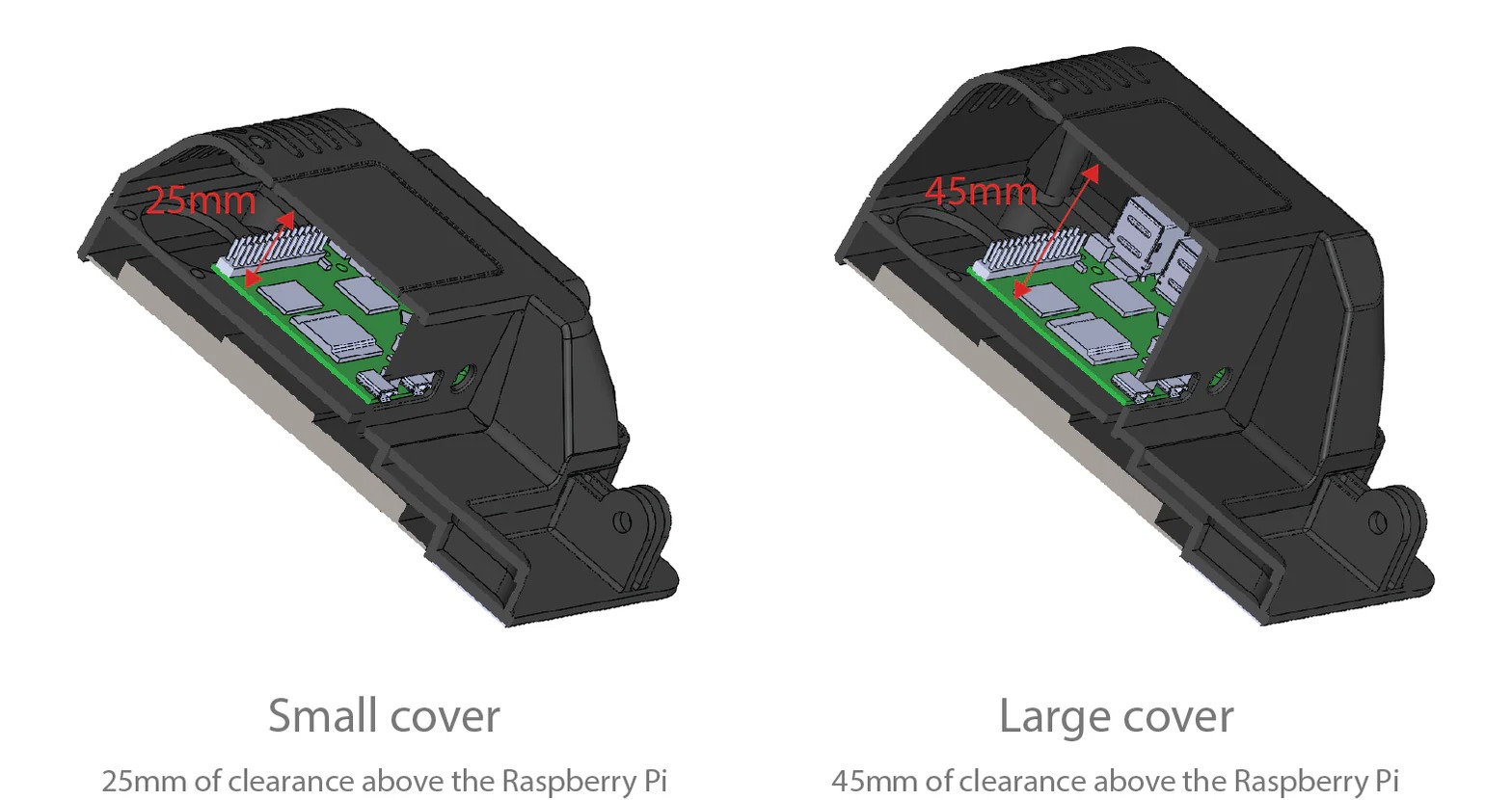

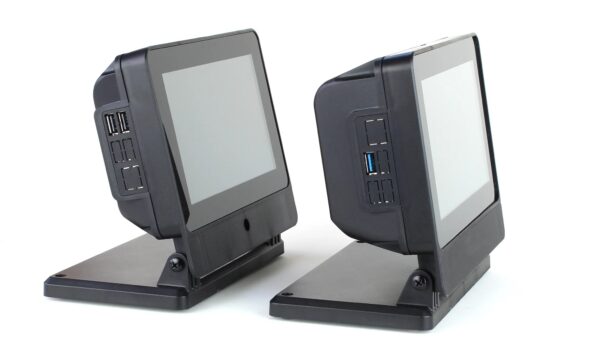

《尺寸比較》

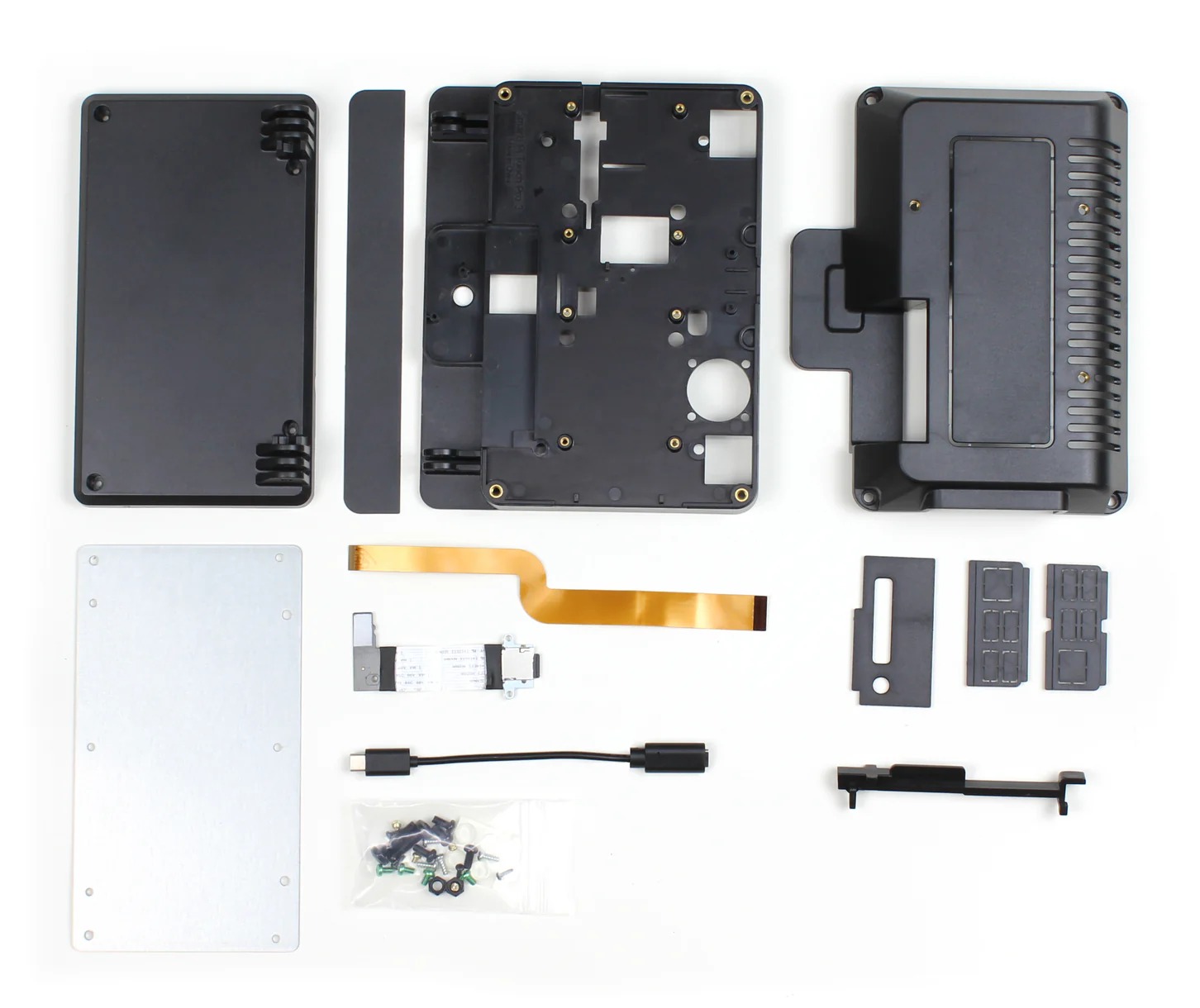

《出貨清單》

《組裝說明》

• Detailed setup guide here.
